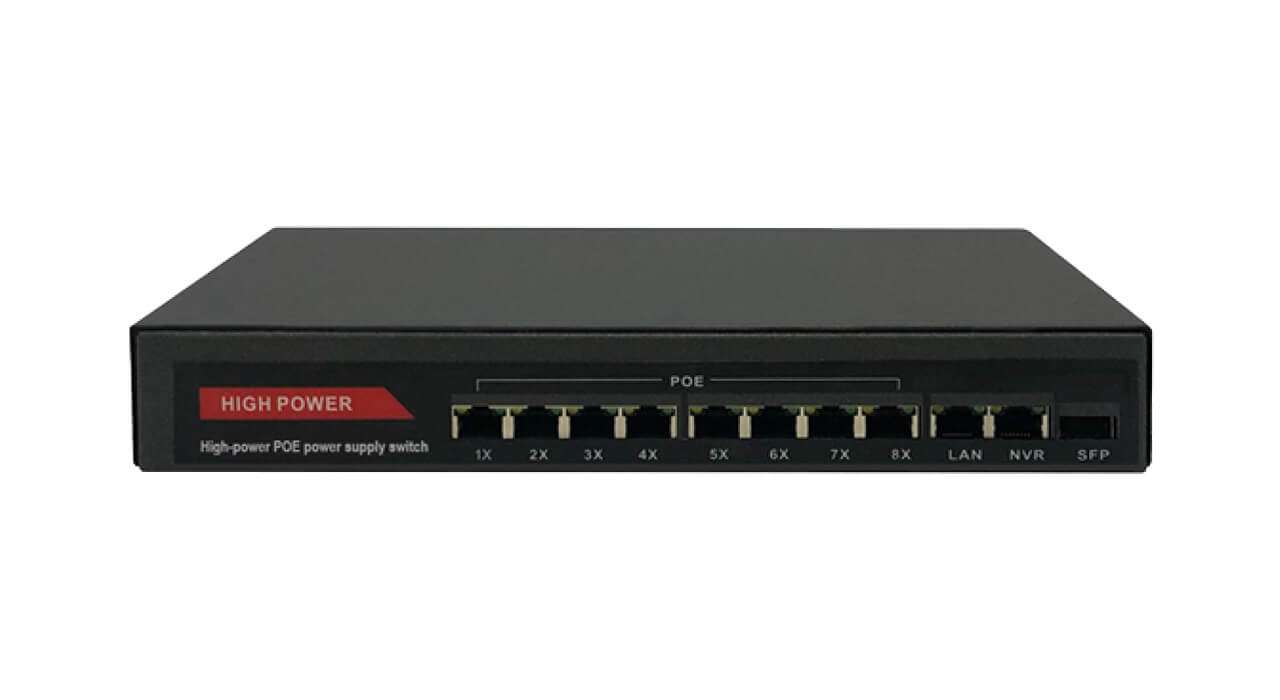

سوئیچ دوربین مداربسته IP سیماران مدل SM-LB82P-SF

SM-LB82P-SF

ناموجود


سوئیچ شبکه سیماران مدل SM-LB82P-SF:

سوئیچ شبکه سیماران مدل SM-LB82P-SF یک سوئیچ اترنت کم مصرف با کارایی بالا و استفاده بسیار راحت میباشد که مناسب شبکه های local کوچک و متوسط است. این سوییچ 8 پورت 10/100 مگابیت بر ثانیه POE و 2 پورت 1000 مگابیت بر ثانیه Gigabit و یک پورت نوری 1000 مگابیت بر ثانیه SFP مخصوص xvr و nvr دارد( 10 پورت است که 8 پورت 10/100 POE برای ورودی دوربین و 2 پورت 2 Gigabit uplink و یک پورت SFP ) سوئیچ شبکه یSM-LB82P-SF سیماران دارای تکنولوژی ذخیره و ارسال است که تضمین میکند پهنای باند به طور موثر به هر پورت اختصاص داده شود، همچنین هر پورت دارای عملکرد انطباقی (adaptive function) است. حداکثر فاصله برای این سوئیچ شبکه ی 10 پورت 200 متر است. سوئیچ شبکه یSM-LB82P-SF سیماران دارای استاندارد IEEE802.3af/at می باشد.

این سوییچ شبکه قابلیت پشتیبانی از:

• VLAN and tag-based VLAN

• port aggregation

• bandwidth control

• port mirroring

• priority

• static MAC address table

• port security

• IEEE 802.3az

• broadcast storm protection

• 8 * 10 / 100Mbps and 2 * 1000M adaptive RJ45, support auto flip (Auto-MDI

/ MDIX) and one 1000Mbps fiber port 1K MAC address

• EEPROM configuration

• All ports support 2KV lightning protection

• he maximum forwarding data packet length 1552/1336 bytes

• 25M clock, built-in power supply, standard metal shell design

مشخصات فنی

  • رنگ
    مشکی
  • ابعاد
    279×148×44mm
  • کشور سازنده
    ایران
  • مدت زمان گارانتی
    24 ماه
  • Chip solution
    IP178G+DH2184
  • Standards / Protocols
    IEEE 802.1q, IEEE 802.1p,IEEE 802.3az,IEEE 802.3af/at
  • Topological structure
    star-shaped
  • Network media
    10BASE-T: Unshielded category 3, category 4, category 5 twisted pair (maximum 100m)
    100BASE-TX/100BASE-T: Unshielded category 5, over category 5 twisted pair (maximum 100m)
  • Ethernet Port
    8*10/100/1000M RJ45 PoE ports(Auto Negotiation/Auto MDI/MDIX)
    2*10/100/1000M UP-LINK ports(Auto Negotiation/Auto MDI/MDIX)
    1*1000Mbps fiber interface
  • concatenation
    All ports can be used as UP-LINK ports
  • Forwarding method
    Store and forward
  • MAC address storage
    2K
  • Exchange capacity
    7.6Gbps
  • forwarding rate
    5.65Mbits
  • Cache
    1.5Mbits
  • Jumbo frame
    2048byte/9K Byte
  • Indicator light /each
    Power.System (Power:Yellow light) When the load is connected, the indicator status is steady light
  • Indicator light / per port
    Link/Activity (Link/Act:Green light) When the signal is connected, the status of the indicator light is blinking
  • power supply
    AC:100-240V 50/60Hz Built-inDC:52V,150W
  • Power supply pin
    1/2(+),3/6(-)(POE port only)
  • POE Port output power
    Single port output maximum 30W
  • Speed limit function
    Support POE speed limit 10M / 100M (the machine needs to be
    powered off when the switch is toggled, and the POE transmission
    distance can reach 250 meters when the speed limit is 10M)
  • Static power
    MAX:6.9W (220V/50Hz)
  • Use environment
    Working temperature: -10 ℃ ~ 70 ℃ (32 ℉ ~ 127 ℉)
    Storage temperature: -40 ℃ ~ 85 ℃ (-97 ℉ ~ 142 ℉)
    Working humidity: 10% ~ 90% non-condensing
    Storage humidity: 5% ~ 95% non-condensing
  • Shell material
    metal
  • operating system
    Support Windows / MAC OS / Netware / Linux operating system
  • Customized service
    OEM/ODM
